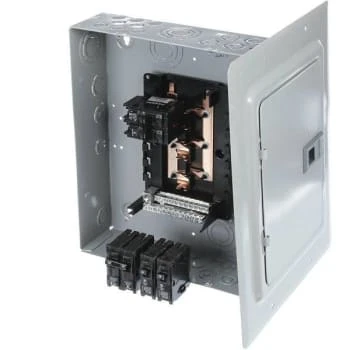

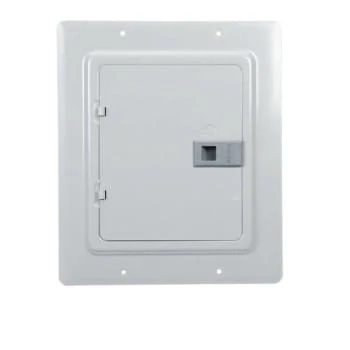

- Siemens 100A 10-Space 20-Circuit Main Breaker Load Center Renovation Value-Pack
- Single Phase, 100 Amp Main Breaker Load Center With 10-Spaces/20-Circuits
- Includes 2 Q115 single-pole 15 Amp breakers and 1 Q230 double-pole 30 Amp breaker
- Aluminum bus
- Features Siemens patented Insta-Wire technology which allows for quick and easy installation because screws are already backed out, ready for wire insertion on ground and neutral bars
- Combination head screw on the neutrals, ground, trim, upper pan and bond screw provide installation flexibility
- All ES Series load centers allow the main breaker to be converted to main lug, but not vice versa
- Single sided inboard neutral on 24-circuits and below; dual on 30-circuits and above
- Mounting tabs on the trim hold the load center in place freeing up both hands to drive the trim screws
- A rigid, sturdy base pan provides the ruggedness required for the harshest applications
- NEMA type 1: enclosure is intended for indoor use primarily to provide protection against contact with the enclosed equipment in locations where unusual service conditions do not exist
- Mfg #E1020MB1100FCGP
| Make & Model | |
|---|---|
| Brand | Siemens |
| Country of Origin | MEXICO |
| UNSPSC | 39121101 |
| UPC | 039923203243 |
| UPC Code | 39923203243 |
| Specifications | |
|---|---|
| Color | White |
| Material | Brass |
| Package Quantity | 1 |
| Certifications & Standards | |
|---|---|
| AbilityOne | |
| ADA Approved | |
| GSA Approved | |
| Made in the USA | |
| TAA/BAA Compliant | |
| UL Listed | |
| HazMat | |
|---|---|
| Hazardous | |
| Packaging Dimensions | |
|---|---|
| Height | 5.450 |
| Length | 16.750 |
| Size Measure | IN |
| Weight | 14.710 |
| Weight Measure | LB |
| Width | 14.150 |
