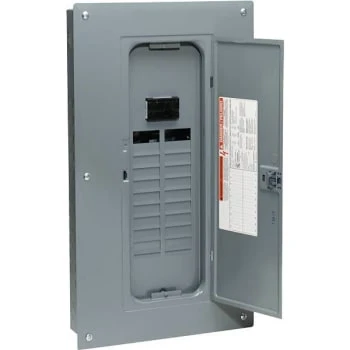

- Square D Homeline 100A 20-Space 40-Circuit Indr Main Breaker Load Center W/ Cvr
- Includes A Fully Distributed Neutral Bar, Allowing For The Installation Of Homeline Plug-On Neutral Combination Arc Fault Breakers On Any Space
- Each pole space is compatible with a Square D Homeline full-size, tandem or quad breakers
- Ground and neutral bars accept up to (3) #10-14 equipment grounds

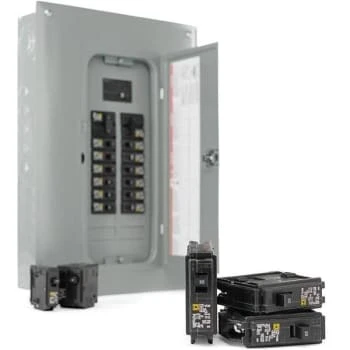

- Includes (2) HOM120 Homeline 20 Amp single-pole circuit breakers, (1) HOM230 Homeline 30 Amp double-pole circuit breakers and a combination flush/surface cover

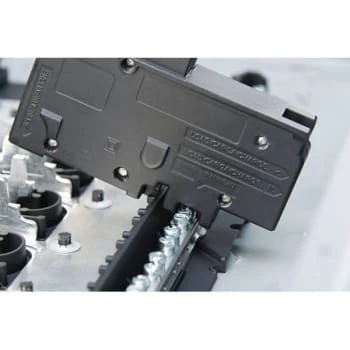

- Accommodates plug-on secondary surge arrestor (sold separately)
- Overhead/underground feed simply by rotating the device before installing
- Single phase, Indoor Main Breaker Homeline Breaker Box
- Rated 120/240 VAC and 22,000 AIR short circuit current rating
- Automatic flush adjusting cover requires less time to complete the job
- Designed with straight-in mains to save expensive cable and time

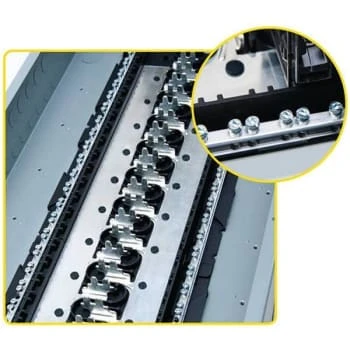

- Distributed split branch neutral with terminal screws backed out offers up to 50% more terminals than UL requires, increases wiring flexibility, saves installation time and simplifies wiring
- Thermoplastic interior assembly is among the most rugged in the industry
- Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
- Mfg #HOM2040M100PCVP
| Make & Model | |
|---|---|
| Brand | Square D |
| Country of Origin | USA |
| UNSPSC | 39121101 |
| UPC | 785901977339 |
| UPC Code | 785901977339 |
| Specifications | |
|---|---|
| Color | White |
| Material | Brass |
| Package Quantity | 1 |
| Certifications & Standards | |
|---|---|
| AbilityOne | |
| ADA Approved | |
| GSA Approved | |
| Made in the USA | |
| TAA/BAA Compliant | |
| UL Listed | |
| HazMat | |
|---|---|
| Hazardous | |
| Packaging Dimensions | |
|---|---|
| Height | 5.700 |
| Length | 16.100 |
| Size Measure | IN |
| Weight | 24.350 |
| Weight Measure | LB |
| Width | 23.400 |
