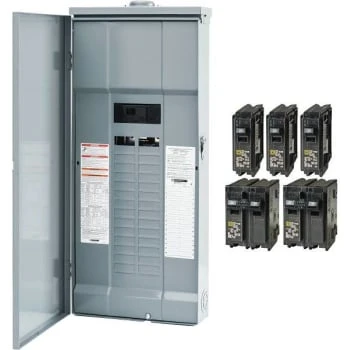

- Square D Homeline 200A 30-Space 60-Circuit Outdoor Load Center Value Pack
- Square D Homeline 200 Amp 30-Space 60-Circuit Outdoor Main Breaker Plug-On Neutral Load Center – Value Pack
- Includes a fully distributed neutral bar, allowing for the installation of Homeline plug-on neutral combination arc fault breakers on any space
- Each pole space accepts full-size, tandem or quad breakers
- Ground and neutral bars accept up to (3) #10-14 equipment grounds
- Includes(3) HOM120 Homeline 20 Amp single-pole circuit breakers, (2) HOM230 Homeline 30 Amp double-pole circuit breakers and a rainproof outdoor cover
- Accommodates plug-on secondary surge arrestor (sold separately)
- Main feeders terminate from the top, feeders can enter from any direction, however, device cannot be rotated
- Single phase, for outdoor installation
- Rated 120/240 VAC and 22,000 AIR short circuit current rating
- Rainproof cover features a stainless steel hasp that is easily padlocked for safety from theft
- Designed with straight-in mains to save expensive cable and time
- Distributed split branch neutral with terminal screws backed out offering with up to 50% more terminals than UL requires increases wiring flexibility saving installation time and simplifies wiring
- Thermoplastic interior assembly is among the most rugged in the industry
- Mfg #HOM3060M200PRBVP
| Make & Model | |
|---|---|
| Brand | Square D |
| Country of Origin | USA |
| UNSPSC | 39121101 |
| UPC | 785901977322 |
| UPC Code | 785901977322 |
| Specifications | |
|---|---|
| Color | White |
| Material | Brass |
| Package Quantity | 1 |
| Certifications & Standards | |
|---|---|
| AbilityOne | |
| ADA Approved | |
| GSA Approved | |
| Made in the USA | |
| TAA/BAA Compliant | |
| UL Listed | |
| HazMat | |
|---|---|
| Hazardous | |
| Packaging Dimensions | |
|---|---|
| Height | 4.800 |
| Length | 35.500 |
| Size Measure | IN |
| Weight | 39.100 |
| Weight Measure | LB |
| Width | 15.300 |
