-68%

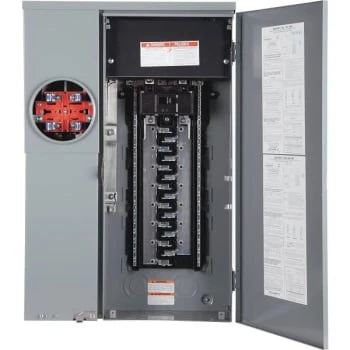

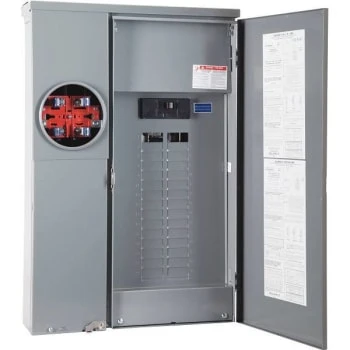

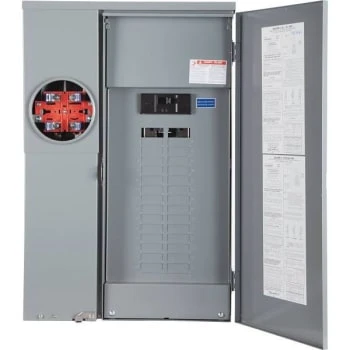

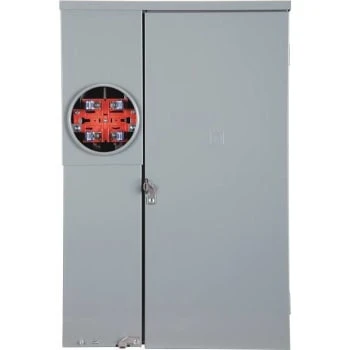

Square D Homeline 200a 30-Space Outdoor Csed W/ Solar-Ready Main Breaker
Original price was: $309.07.$98.99Current price is: $98.99.
- Fast and Secure Payments
- Quality that lasts, prices that don't.
- Satisfaction Guaranteed
- Peace of Mind with Every Purchase
- Square D Homeline 200A 30-Space Outdoor Csed W/ Solar-Ready Main Breaker
- Square D Homeline 200 Amp 30-Space 42-Circuit Outdoor Ring-Type Surface Mount Solar-Ready Main Breaker Plug-On Neutral Csed
- Includes a fully distributed neutral bar, allowing for the installation of Homeline plug-on neutral combination arc fault and dual function breakers on any space
- Solar-ready for new or future installations with provisions for field-installed CTs on line bus
- Accepts solar ready sub-feed lug kit SR69064A for solar connections ahead of the main breaker
- Meets EUSERC specifications
- Factory-installed 200 Amp main breaker
- Rated 120/240 VAC and 22,000 AIR short circuit current rating
- Ground and neutral bars accept up to (3) #10-14 equipment grounds
- 4 jaw ring type meter socket
- Surface mount NEMA type 3R enclosure for outdoor installation
- Accommodates plug-on secondary surge arrestor, and features a plug-in design for easy installation
- Thermoplastic interior assembly is among the most rugged in the industry
- Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
- Mfg #SC3042M200PS
| Make & Model | |
|---|---|
| Brand | Square D |
| Country of Origin | MEXICO |
| UNSPSC | 39121101 |
| UPC | 810032910044 |
| UPC Code | 810032910044 |
| Specifications | |
|---|---|
| Color | White |
| Material | Brass |
| Package Quantity | 1 |
| Certifications & Standards | |
|---|---|
| AbilityOne | |
| ADA Approved | |
| GSA Approved | |
| Made in the USA | |
| TAA/BAA Compliant | |
| UL Listed | |
| HazMat | |
|---|---|
| Hazardous | |
| Packaging Dimensions | |
|---|---|
| Height | 7.500 |
| Length | 33.500 |
| Size Measure | IN |
| Weight | 56.000 |
| Weight Measure | LB |
| Width | 22.000 |
